• The work involved the production of 36,000 concrete segments, equal to 4,000 rings corresponding to a total of 210,000 cubic metres of concrete.
• The tunnel ring has an outer diameter of 14.65 m and an inner diameter of 13.45 m and consists of 8 segments plus a key segment.
• Production was carried out with a specific carousel system consisting of 4 complete sets of formworks distributed along the production line and 2 forced steam curing lines.
• The daily production was 72 segments, 8 complete tunnel rings equal to over 400 m3 of concrete.
• The entire order was carried out in about 30 months.
• This production was carried out with CE marking certified by ICMQ.

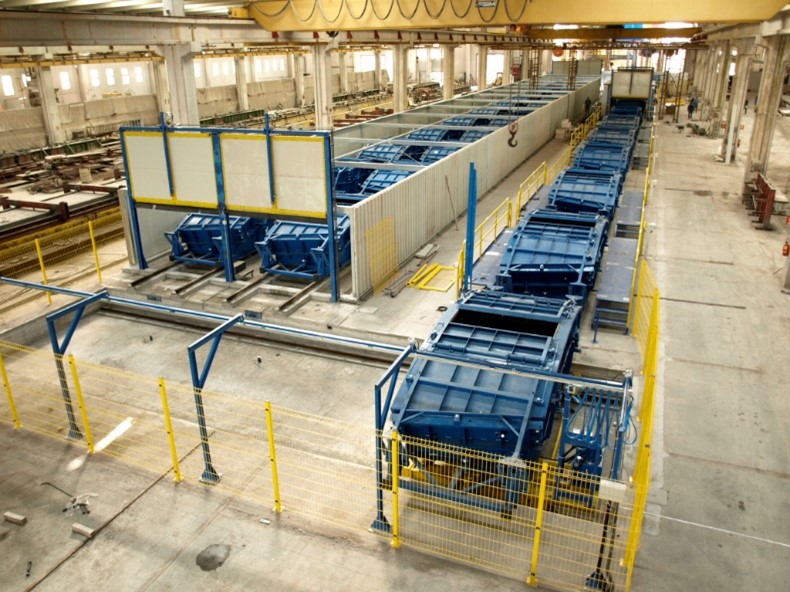

Plant, production line

Plant, segments storage area

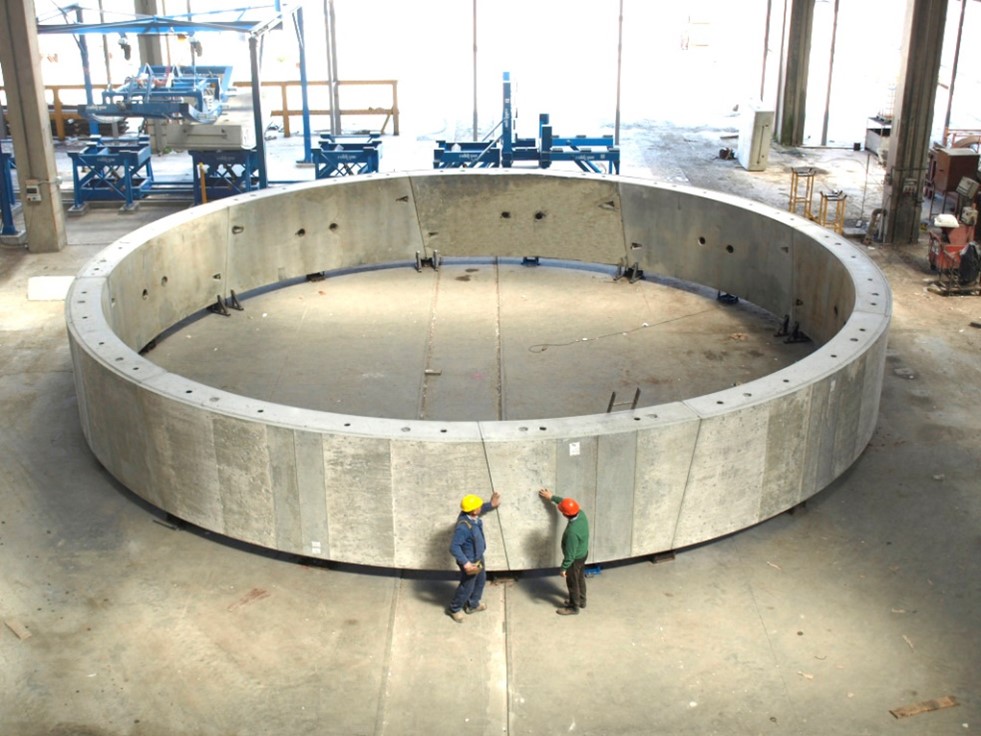

Plant, test ring construction

The types range from traditional beams with a double T section, with a wide upper and/or lower wing, to large box beams for railway decks.
The plant’s flexibility and production capacity allow it to produce almost any type of beam.

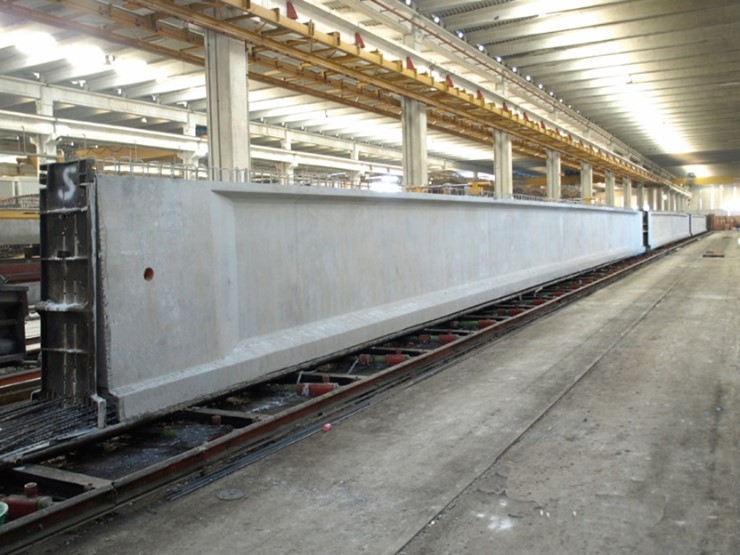

I-beams

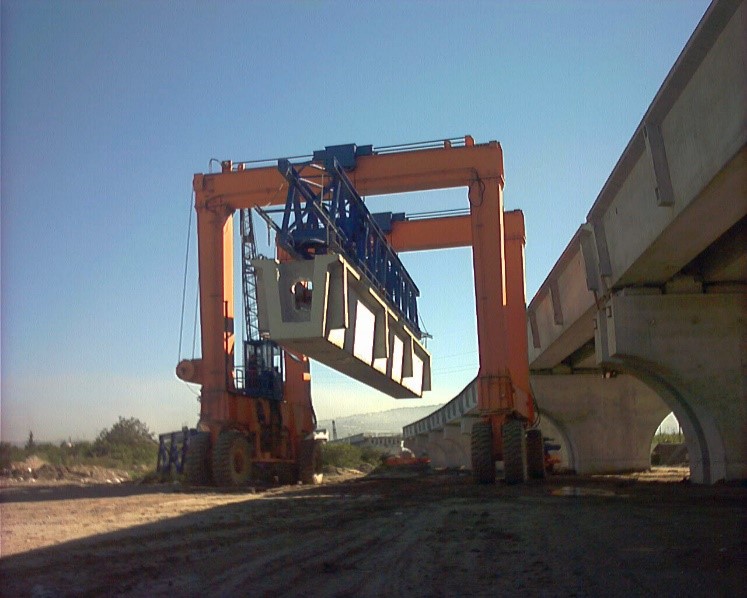

Box beams

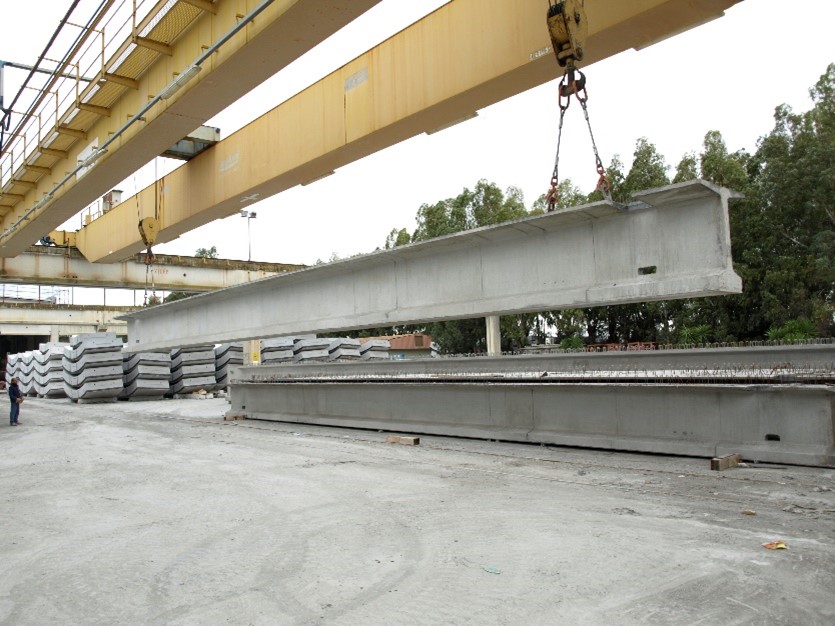

Upper wide-wing beams
